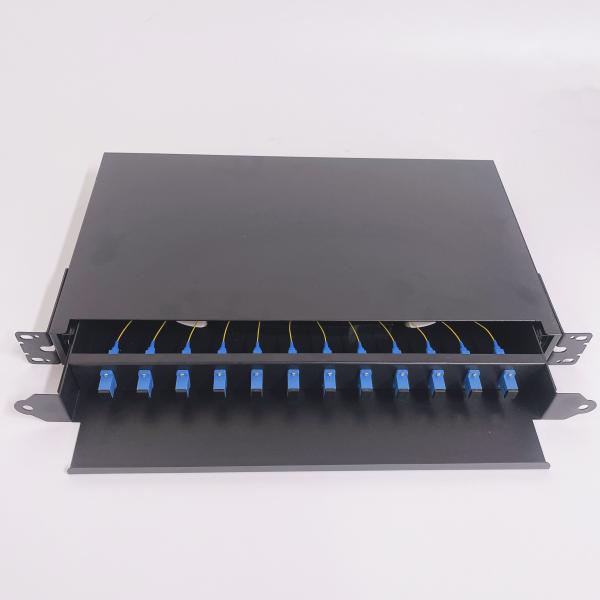

Drawer Sliding 1U Black Color Rack Mount Optical Fiber Patch Panel 12 Ports
Description
The 12 port rack mount optical fiber patch panel is a 19’’ rack mounted fiber optic patch panel that made of cold-roll steel, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.
The 12 port rack mount optical fiber patch panel has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.
The 12 port rack mount optical fiber patch panel is suitable for all types of adapters.
The 12 port rack mount optical fiber patch panel can also be pre-loaded completely with the required adapter and simple management kit.
The sliding system in its basic form can be supplied with or without adapters. The tray is locked in place and has two plastic catches for simple installation.
The 12 port rack mount optical fiber patch panel fully provides a perfect working flat form for simple installation and easy maintenance.
The 12 port rack mount optical fiber patch panel has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.
The 12 port rack mount optical fiber patch panel height: 1U: 44.5mm (max 24 ports)
Rack Mount Optical Fiber Patch Panel Catalogy:
- Fixed Type Optical Fiber Patch Panel
- Drawer Type Optical Fiber Patch Panel
- Rotate Type Optical Fiber Patch Panel
- Distribution Unit Optical Fiber Patch Panel
- DinRail Optical Fiber Patch Panel
- Wall mount Optical Fiber Patch Panel
Applications
- Passive Fiber Optic Networks (PON, GPON)
- Telecommunication networks
- FTTH, FTTB, FTTR, FTTO, FTTA
- LAN,WAN ,CATV networks
- Active device termination
Feature
- Color: Black, Beige, White
- Height: 1U to 4U or more
- Standard 19'', be fit with 19'' Distribution frame.
- Adapter port available: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU, ...
- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
- Packing: 1pc/small carton box, 1U: 5pcs/big carton, 2U: 3pcs/carton, 4U: 2pcs/carton
Specifications
| Fiber Capacity of panel | Max 48fo (LC Duplex adapter) |
| Panel Connector Port | 12/24 ports |
| Type | Drawer type |
| Dimension | 485*300*1U |
| Material | Cold Rolled Steel or Aluminum |
| Storage Temperature | -45~+65℃ |
| Thickness | 0.6 0.8 1.0 1.2 1.5mm |
| Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
| Fiber type | SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5 |
| Weight | 6.50kgs |
| P/N: | KCO-DR-1U-24-SCS |
